Description

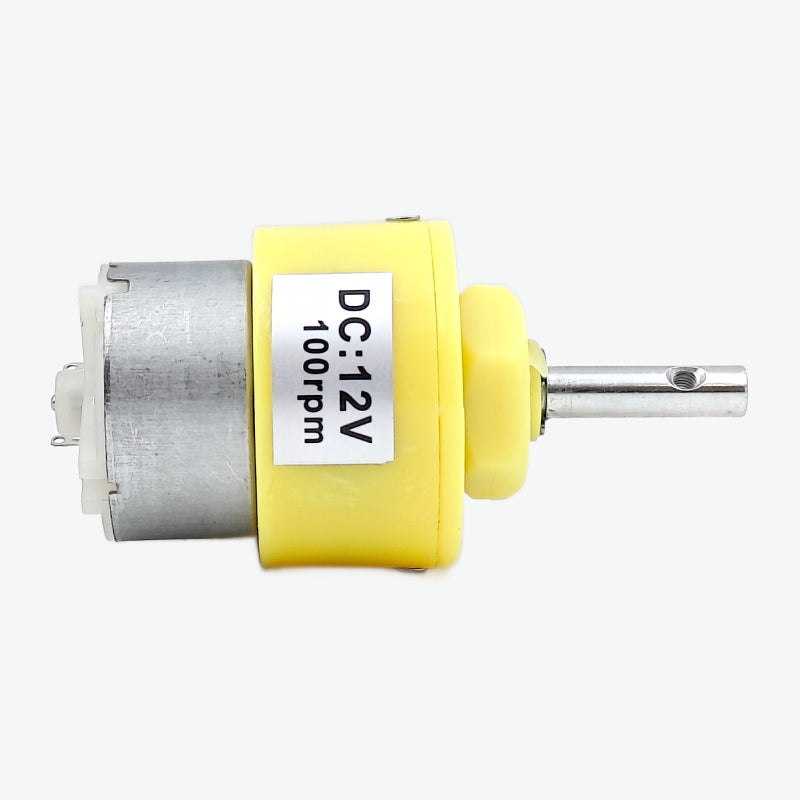

geared dc motor 12v Buy 12V DC Geared Motor 100RPM High Torque for Robotics – QuartzComponentsSelecting the right DC gear motor for your robotics project can be challenging. This 12V DC Geared Motor (100 RPM) is designed for reliable performance in heavy duty applications, robotics platforms, industrial automation, and educational projects. It offers a perfect balance between speed and torque while being easy to integrate into your system without requiring expensive motor control circuitry. The built in plastic gearbox enhances torque output,
Selecting the right DC gear motor for your robotics project can be challenging. This 12V DC Geared Motor (100 RPM) is designed for reliable performance in heavy-duty applications, robotics platforms, industrial automation, and educational projects. It offers a perfect balance between speed and torque while being easy to integrate into your system - without requiring expensive motor control circuitry. The built-in plastic gearbox enhances torque output, making it ideal for driving robotic wheels and mobile platforms. Depending on gearbox configuration, RPM and torque vary — this model is rated at 100 RPM with 2.9 kg-cm rated torque, ensuring smooth and stable performance for medium-load robotics applications.
The motor includes a hex nut for easy mounting, simplifying mechanical assembly. Additionally, the shaft features a 3mm threaded drill hole at the center, making it convenient to attach wheels, couplers, brackets, or custom mechanical fixtures.
This motor operates efficiently between 4V–12V DC (12V recommended), making it a versatile retrofit option for all-terrain robots and various motion control projects.
For precise speed and direction control, pair this motor with compatible drivers from our Motor Drivers Collection, including L298N, L293D, BTS7960, and other high-performance modules.
Specifications:
- Gear Type: Plastic
- Rated Speed: 100 RPM
- Working Voltage: 4–12V DC (12V Recommended)
- Rated Torque: 2.9 kg-cm
- Torque (Max Operating): 5 kg-cm
- Stall Torque: 11.4 kg-cm
- No-Load Current: 60mA
- Max Load Current: 300mA
- Shaft: 3mm threaded drill hole
- Mounting: Includes hex nut
Applications:
- Robotics projects
- Robot wheel driving systems
- All-terrain robotic vehicles
- Industrial automation systems
- Educational & STEM projects
- DIY motor control applications
Also do checkout:
Package Includes:
1 × Geared Motor – 100 RPM – 12V
